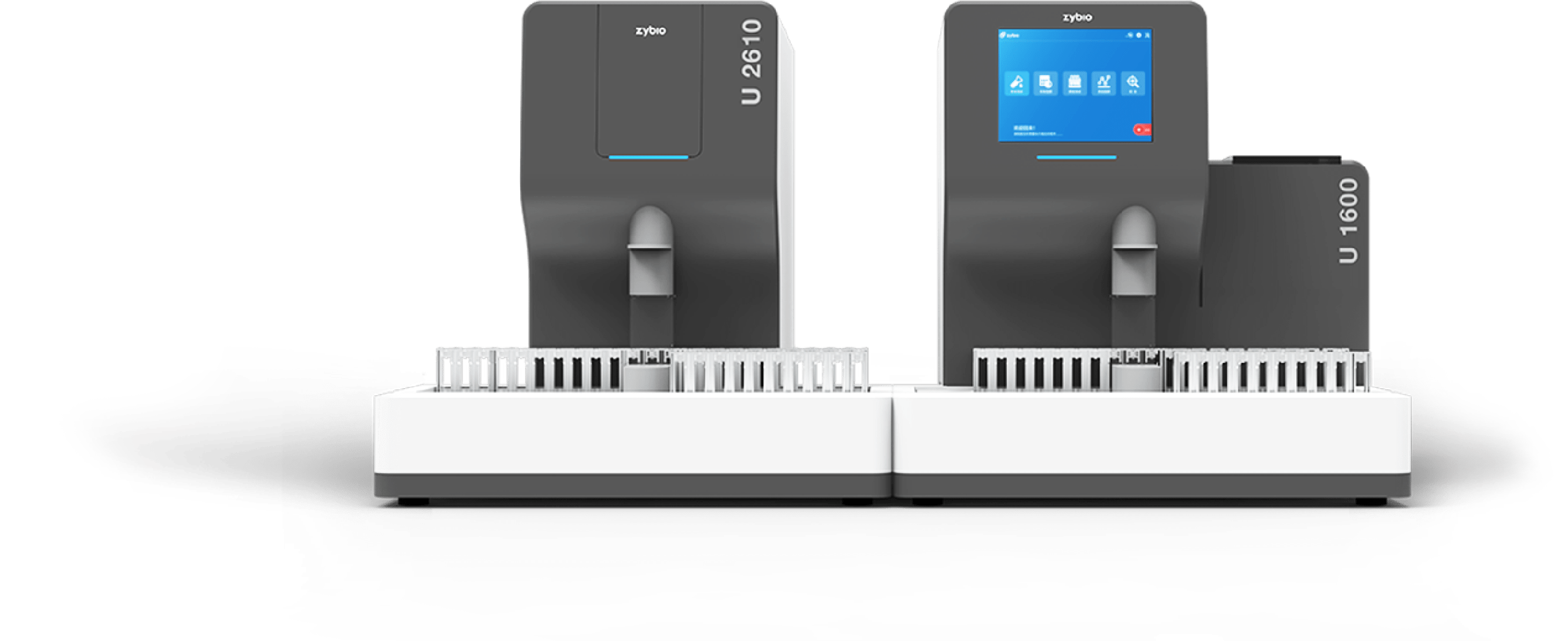

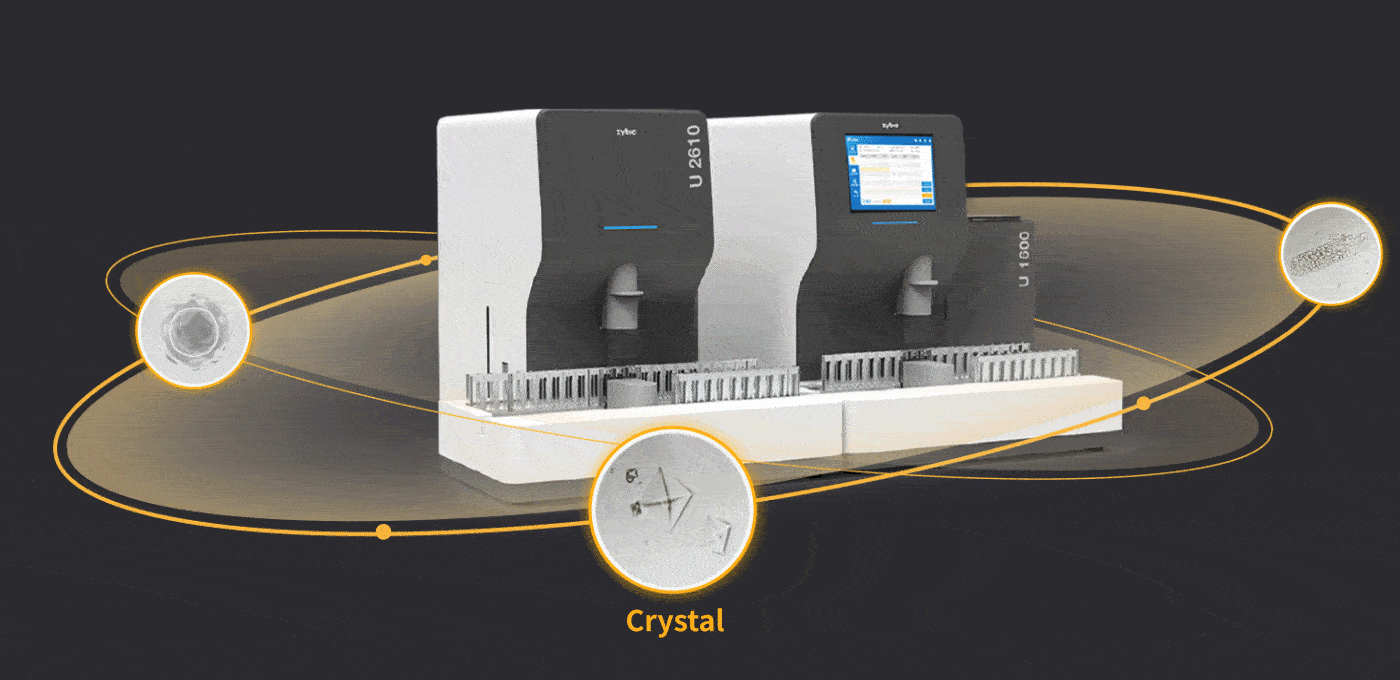

Urinalysis
U1600
Urine Chemistry Analyzer
U2610
Urine Sediment Analyzer
Precise and effcient
U2610
U1600
150 T/H
For sediment analysis
6*10
Sample positions, support STAT priority
≤0.05%
Carryover (≤100,000 pcs/uL)
Including 2 physical analysis:
Conductivity
Osmolality
240 T/H
For chemistry analysis
8 -inch
Touch screen for easy operation
Including 3 physical analysis:
Color
Specific gravity
TurbidityEfficient, intelligent, and
flexible system
Efficient
150 T/H for Sediment or
Chemistry+
Sediment
joint detection
Intelligent
If the chemistry results are
negative,
no microscopic
analysis is performed
Flexible
No need for a connection
bridge to
connect machine
Advanced Technology,
Accurate Results

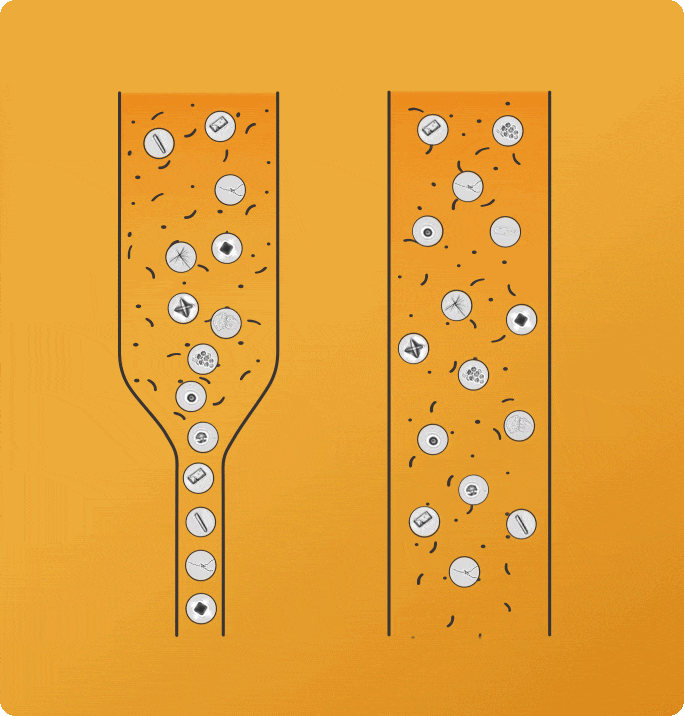

Laminar Flow Technology
No need for centrifugation or staining
Particle pass through the imaging area in a single layer to avoid overlap and aggregation
Sample carry-over less than 0.05%
(Concentration ≤ 100,000 /μL)
≤0.05%
carry-over rate

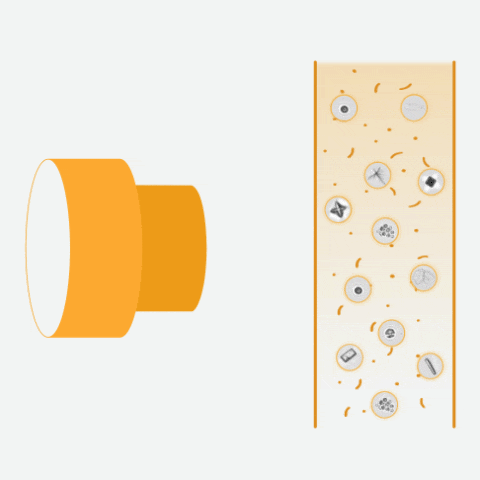

High-speed Photography Technology
High-speed photography to aviod trailing and blurring
High-resolution images to increase recognition accuracy
Images can be reviewed to minimize the need of manual microscopy
High-speed Photography Technology
High-speed photography to aviod trailing
and blurring, High-resolution images to increase
recognition accuracy, Images can be reviewed to
minimize the need of manual microscopy

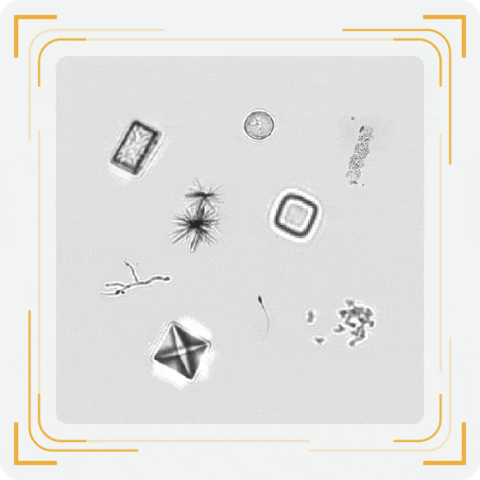

Medical Image Recognition (Auto-Particle Recognition)
Accurately extract image feature information for recognition and classification
Powerful clinical database, providing up to 25 automated sediment classification
Combining recognition accuracy with recognition efficiency
Medical Image Recognition (Auto-Particle Recognition)
Accurately extract image feature information for recognition and classification
Powerful clinical database, providing up to 25 automated sediment classification
Combining recognition accuracy with recognition efficiency
Comprehensive Parameters,
More Detection Choices

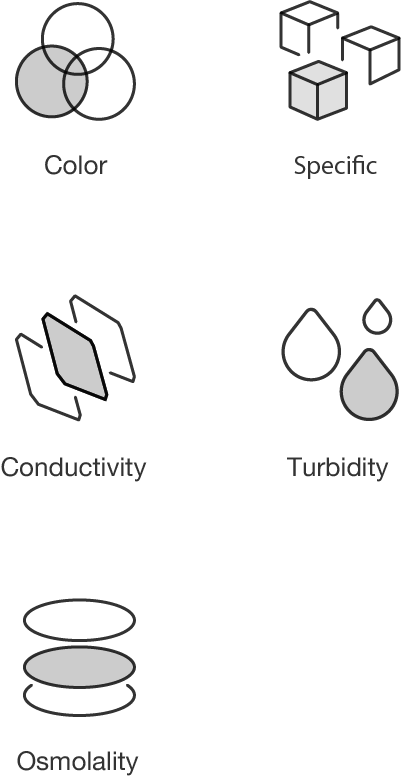

5
Physical
Parameters

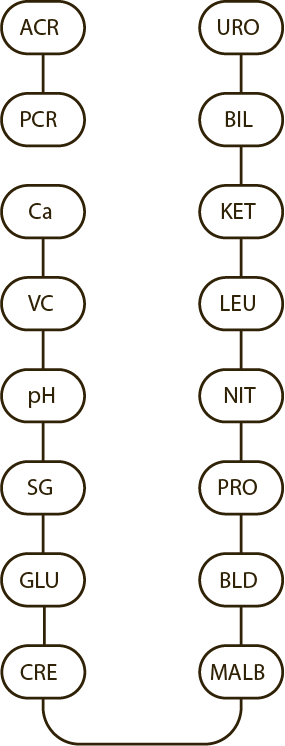

14+2
Chemistry
Parameters

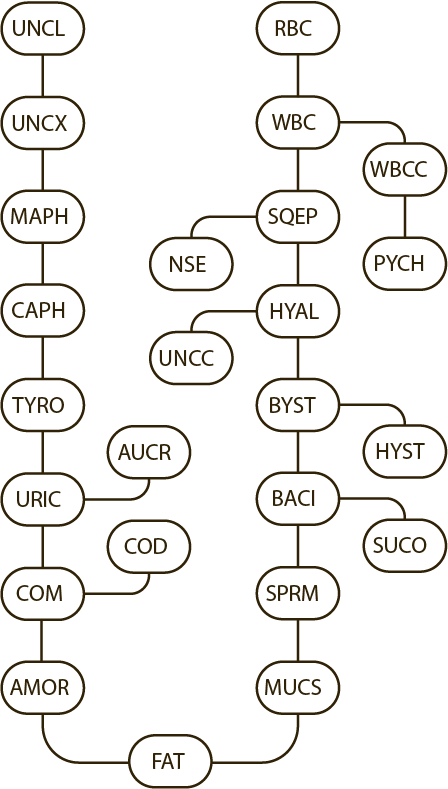

46
Formed Particle
Parameters
