Hematology

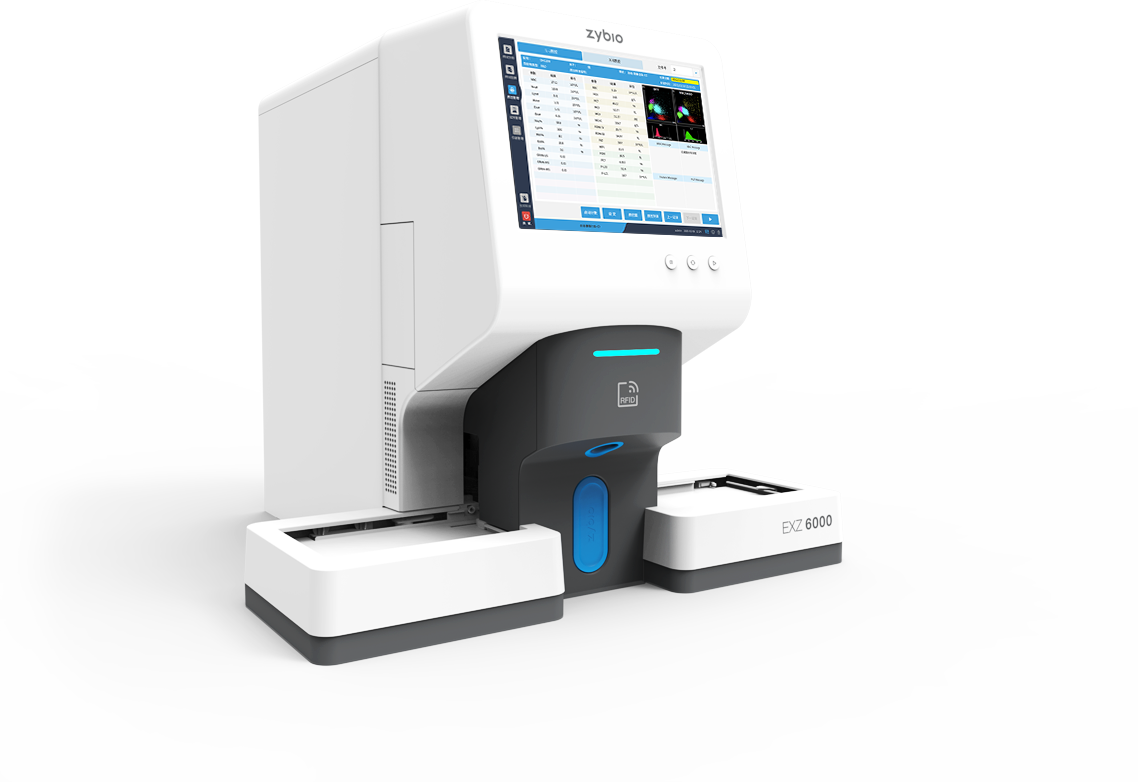

EXZ 6000

Hematology Analyzer

A powerful assistant for micro-volume
whole blood automatic detection

Convenient Operation

Optimized testing process to
reduce manual operations

Input

Load sample info via barcode
management

Input

Load sample info via barcode management

1

Load

Maximum continuous loading of
50 samples at a time

Load

Maximum continuous
loading of 50 samples
at a time

2

Review

View parameters, graphs, and
flag info on one page

Review

View parameters, graphs,
and flag info on one page

3

Test

Sample auto loading,
mixing and sampling

Test

Sample auto loading,
mixing and sampling

4
1
2
3
4

High-definition color touch screen

12.1-inch touch screen, one screen for
all results, no need to flip
1-2 steps
access to the main operation

Capillary blood auto loading,
mixing, and sampling

Unique capillary blood dedicated sample rack
Autoloader mode, capillary WB≤ 20 μL

Auto loading reagent information

Radio Frequency (RF) technology automatically
loads
the reagent information
without scanning barcode

Efficient Detection

4 Sampling Mode

Autoloader-venous WB mode

Autoloader-capillary WB mode

Manual-WB mode

Manual-PD mode

Maximum Throughput

90 samples/h

CBC mode

70 samples/h

CBC+DIFF mode

Reliable Results

Advanced flow cytometry and tri-angle laser scatter technology, provide 1 3D scattergram and 4 2D scattergrams

Distinctive optical channel vs impedance channel, brings you more accurate WBC 5-diff differentiation

Expanded linearity range of WBC and PLT makes you more confident in low-value samples

Paramerer WBC RBC HGB HCT PLT
Linearity range (0-500)×109/L (0-8.00)×1012/L (0-250)g/L (0-67)% (0-5000)×109/L
  • Paramerer

    Linearity range

  • WBC

    (0-500)×109/L

  • RBC

    (0-8.00)×1012/L

  • HGB

    (0-250)g/L

  • HCT

    (0-67)%

  • PLT

    (0-5000)×109/L
