Mass Spectrometry System
Rapid and convenient identification
tool
for bacteria.
Microbiology

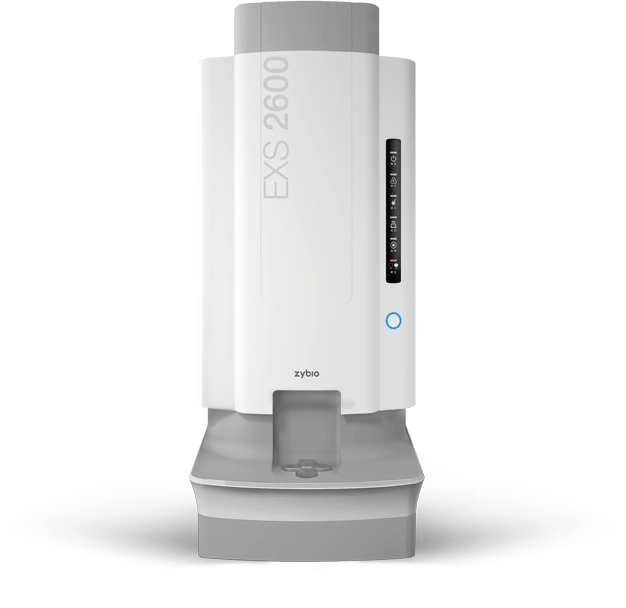

EXS 2600
Mass Spectrometry System
-
Rapid Identification Tool
＜1min
Target - in/out time
7 min

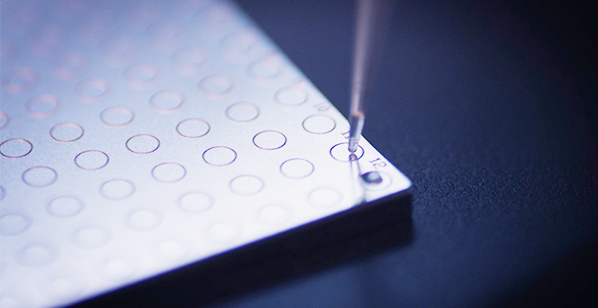

96 spots tests at one plate
-

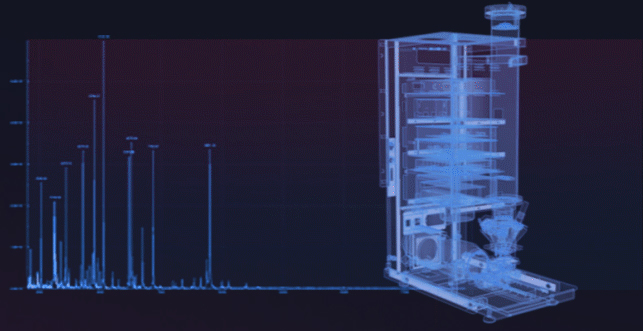

High-quality structure and
hardware technologyTurbomolecular pump without oil,
reduce maintenance cost.
High ion propulsion technology, increase the
sensitivity and resolution -
Convenient Software Operaion
One screen display test spectra,
identification score and result.
Apart from bacteria identification report, standard
colony plate picture
and morphological reference
picture to assist right decision. -
Rich strains database
Common bacteria like filamentous fungi, yeasts,
mycobacteria, etc.,
in the clinical database, bring
accurate identification result.
Comprehensive RUO Application
Positive and negative dual ion mode,
widely applied in the phosphate protein research among
antibiotic-resistant bacteria and drug sensitivity analysis
Positive mode
Negative mode
EXS2600 system
- Work PrincipalMALDI-TOF
- Mass Range1500-30000 Da
- Operation SystemWindows 7 ( 64 bit) and above, support LIS
- Laser N2 UV laser，frequency 1-60 Hz
- Power Supply 100-240 V, 50/60 Hz, 300 W
- Weight 116.1 Kg
- Dimension (mm)490(W) *800(D) *1215（H）
